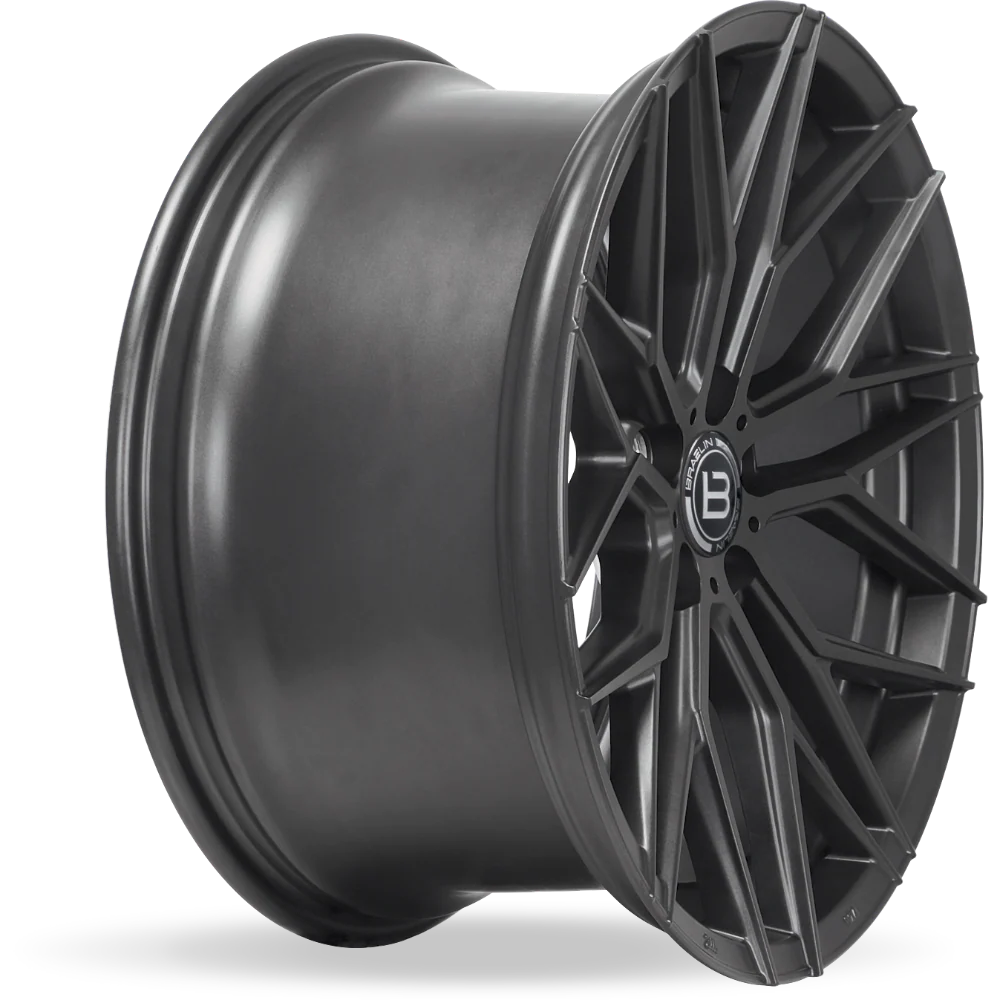

Looking for a wheel to stand out from all the rest? Look no further than the BRAELIN BR10! This alloy wheel exudes a strong and sophisticated presence with its face design, which is enhanced with precision milling techniques. This helps both aesthetically and with performance by providing levels of depth with each spoke whilst reducing the overall mass. Complete with a Matte Graphite finish, these wheels are a bold statement piece your vehicle!

These Braelin alloys are Flow Form constructed, making them much lighter and stronger than a typical cast construction. To achieve Flow Form, the wheels are spun during the molding process, which alters the molecular structure of the aluminum alloy used. This reduces weight while also improving the structural strength of the wheel. This is the ideal combination of form and function, especially for high-performance vehicles.

View available fitments for your Mazda using the "Applications" tab!

• Details
• Specs
• Applications

• • Multi-spoke based on 5 dual-Y-spoke design
  • Available in 18", 19", 20" diameters
  • Lightweight, high performance, single-piece alloy construction
  • Flow Formed Barrel for reduced weight and increased strength
  • Matte Graphite finish

  • Black Centre Cap with BRAELIN Crest logo
  • Approved for all-weather driving conditions
  • VIA and JWL certifications
• • Style #: BR10
  • Finish: Matte Graphite
  • Pitch Circle Diameter (PCD): 5×114.3mm
  • Hub Bore Diameter: 67.1mm
  • Lug Seat: 60° Conical

  Size	Offset (mm)	Weight (lbs.)	Load Rating (lbs./kg)
  18"×8.0"	+45	21.0	1587/720
  18"×8.0"	+35	21.6	1587/720
  19"×8.5"	+45	24.2	1521/690
  19"×8.5"	+35	25.2	1521/690
  19"×8.5"	+25	25.8	1521/690
  19"×9.5"	+40	22.8	1521/690
  20"×9.0"	+38	27.6	1797/815

• Wheel Size, Offset	18"×8.0", +45mm	18"×8.0", +35mm	19"×8.5", +45mm	19"×8.5", +35mm	19"×8.5", +25mm	19"×9.5", +40mm	20"×9.0", +38mm
  CX-3	2016-2022	2016-2022	2016-2022	❌	❌	❌	❌
  CX-30	2020-2024	2020-2024	2020-2024	❌	❌	❌	❌
  CX-5	2013-2024	2013-2024	2013-2024	2013-2024	❌	2013-2024	2013-2024
  CX-50	2023-2024	2023-2024	2023-2024	2023-2024	❌	❌	2023-2024
  CX-7	2007-2012	2007-2012	2007-2012	2007-2012	❌	2007-2012	2007-2012
  CX-9	2016-2023	2016-2023	❌	❌	❌	❌	2007-2023
  Mazda3	2004-2024	❌	❌	❌	❌	❌	❌
  Mazdaspeed3	2007-2013	❌	❌	❌	❌	❌	❌
  Mazda5	2006-2017	❌	❌	❌	❌	❌	❌
  Mazda6	2009-2021	2009-2021	2009-2021	2014-2017	❌	❌	2014-2017
  Mazdaspeed6	2006-2007	❌	❌	❌	❌	❌	❌
  RX-8	2004-2011	2004-2011	2004-2011	2004-2011	❌	2004-2011*	❌

  *Fitment only on rear axle for Mazda RX-8 vehicles

  Since there are several application combinations possible, we've highlighted the easiest sizes to fit your Mazda. All listed sizes for each vehicle are wheel manufacturer-recommended fitments based on factory vehicle suspension components, and no vehicle modifications should be necessary.


  Should your vehicle have any modifications, then we can no longer guarantee fitment to your vehicle. If your Mazda is not listed, then this wheel does not have an appropriate size available for your vehicle.

About BRAELIN Wheels

Braelin Wheels is a proudly Canadian alloy wheel brand dedicated to covering a wide range of wheel styles and fitments for the luxury, premium passenger vehicles and SUV’s. Their team has over 30 years experience in wheels, and our products are a testament to our enthusiasm and wealth of industry knowledge.

Braelin is committed to overseeing each step of a wheel’s existence. From the moment it’s conceived on the computer screen to its birth in the casting machine, each step of the manufacturing process is closely monitored. The wheel is seen through a series of certification tests right down to the finishing and packaging, making sure your wheels are constructed with the highest quality control standards in the industry.
